IEEE STD 2969-2025 · CIGRE TB 999 · 500 kV TESTED · ZERO BATTERIES

Continuous Thermal Monitoring for High-Voltage Grids

Battery-free wireless sensors harvesting operating power directly from conductor load current (≥ 1 A). 24/7 autonomous contact temperature telemetry for switchgear busbars, power transformers, and 500 kV transmission lines.

Request Engineering Consultation Browse Product Catalog ↓
0 Batteries — Current induction powered
±0.2 °C Accuracy (−10 to +65 °C)
500 kV PD 8.7 pC & −1500 kV BIL
Made in Vietnam — Direct manufacturer

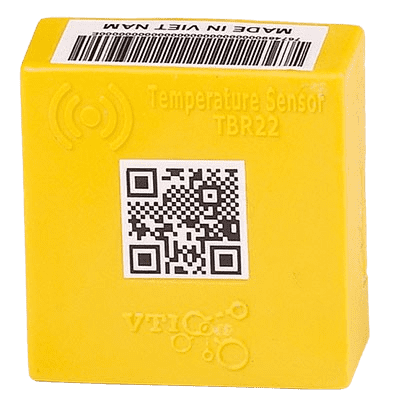

Temperature Sensor VTI-TS-22 Yellow Box
Switchgear & RMU

VTI-TS-22

BLE 2.4 GHz · Starts ≥ 1 A

Temperature Sensor VTI-TS-26 Red Box
Outdoor 500 kV & DLR

VTI-TS-26

LoRa Sub-GHz · Up to 3 km

Precision Contact Probe & QR Tag 100% Maintenance-Free (10+ Yr)
0
Batteries Required (Current Harvested)
≥ 1 A
Operating Threshold on Light Feeder
500 kV
Dielectric Tested (PD 8.7 pC < 10 pC)
> 1,000
Sensors Managed per GW22 Concentrator
FIELD-PROVEN WITH LEADING POWER UTILITIES
EVNNPT
EVNNPC
EVNHANOI
PV POWER
Rugged Monitoring
Dynamic Ratings
EVNNPT
EVNNPC
EVNHANOI
PV POWER
Rugged Monitoring
Dynamic Ratings
CONTINUOUS THERMAL MONITORING ECOSYSTEM

VTI Hardware & Software Product Portfolio

High-precision battery-free sensors, dual-band concentrators, and CBM software designed by VTI Corp for national grid utilities under IEEE 2969 and CIGRE TB 999.

Indoor · BLE 2.4 GHz VTI-TS-22 Self-Powered Wireless Temperature Sensor
Model VTI-TS-22

VTI-TS-22 Switchgear Sensor

Self-powered from conductor current ≥ 1 A, 100% battery-free. Direct contact measurement on busbars, circuit breaker tulip contacts, and MV cable terminations ≤ 52 kV.

Temperature Range −40…+125 °C
Measurement Accuracy ±0.2 °C
Self-Powering Start ≥ 1 A Conductor Current
Wireless Protocol BLE 2.4 GHz (~100 m)
High Voltage Withstand 500 kV (PD 8.7 pC)
Technical Specs → Quote

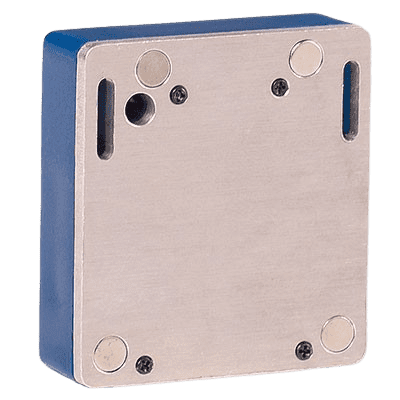

Outdoor · LoRa Sub-GHz VTI-TS-26 Long-Range Self-Powered Wireless Temperature Sensor
Model VTI-TS-26

VTI-TS-26 Outdoor & 500 kV Sensor

Long-range Sub-GHz LoRa transmission up to 3 km, tested at 500 kV with 8.7 pC partial discharge. Engineered for outdoor substation switchyards, transformer bushings, and transmission lines.

Temperature Range −40…+125 °C
Measurement Accuracy ±0.2 °C
Wireless Protocol LoRa Sub-GHz (Up to 3 km)
Enclosure Rating IP68 Weatherproof
High Voltage Withstand 500 kV (PD 8.7 pC)
Technical Specs → Quote
Dual-Band · IEC 61850 Gateway GW22 Industrial Concentrator
Model GW22 / GW22-D

Gateway GW22 Concentrator

Dual-band multichannel IoT concentrator managing over 1,000 sensors. Direct connectivity to SCADA/EMS via Modbus TCP, MQTT over TLS, and IEC 61850 / IEC 60870-5-104.

Sensor Capacity > 1,000 Sensors
RF Bands Dual-Band: 2.4 GHz + Sub-GHz
SCADA Protocols IEC 61850, Modbus TCP, MQTT
Power Supply 85–264 VAC / 24 VDC
Mounting Standard 35mm DIN-Rail
Technical Specs → Quote
Raman OTDR · 20 km Distributed Fiber Optic DTS VTI-GL-100C
Model VTI-GL-100C

Fiber Optic DTS System

Distributed Temperature Sensing (DTS) based on Raman optical time-domain reflectometry measuring continuous thermal profiles across up to 20 km of underground power cables.

Monitoring Range Up to 20 km per Channel
Spatial Resolution 0.5 m (Spot Precision)
Temperature Resolution 0.05 °C
Optical Channels 1, 2, 4, or 8 Channels
Measurement Cycle 1–5 seconds per channel
Solution Details → Quote
Predictive AI · SCADA VTI CBM Thermal Analytics Platform
Software Architecture

CBM / RBM Thermal Platform

Condition-based maintenance platform computing real-time Arrhenius electrical contact degradation kinetics, rate-of-rise thermal alarms, and dispatch integration.

Contact Degradation Arrhenius Rate Analysis
Compliance Standards IEEE 2969, CIGRE TB 999
Alarm Hierarchy 4-Tier Predictive Levels
Deployment Options On-Premise / Secure Cloud
Interoperability REST API, IEC 61850, SCADA
Architecture → Demo
HEAD-TO-HEAD SPECIFICATIONS

Hardware Technical Comparison Matrix

Evaluate parameters to select the optimal sensing modality for your electrical substation or transmission line scope.

Specification Parameter VTI-TS-22 Sensor VTI-TS-26 Sensor Gateway GW22 Fiber DTS VTI-GL-100C
Primary Application Indoor Switchgear & RMU Outdoor 500 kV & Lines Substation Concentrator HV Underground Cables
Power Supply Zero Battery (≥ 1 A Induction) Zero Battery (≥ 1 A Induction) 85–264 VAC / 24 VDC Auxiliary 110/220 VAC Station Supply
Measuring Range −40 °C to +125 °C −40 °C to +125 °C Up to 1,000+ data nodes −40 °C to +150 °C
Accuracy & Resolution ±0.2 °C (Res: 0.1 °C) ±0.2 °C (Res: 0.1 °C) Sub-second telemetry sync ±1.0 °C (Res: 0.05 °C, 0.5 m)
Wireless / Telemetry BLE 2.4 GHz (~100 m) LoRa Sub-GHz (Up to 3 km) Dual-Band BLE + LoRa Reception Raman Optical Backscatter
Dielectric Testing 500 kV (PD 8.7 pC < 10 pC) 500 kV (PD 8.7 pC < 10 pC) IEC 61000-4 EMC Level 4 Optically Isolated Dielectric
Enclosure Protection High-Dielectric V0 Polycarbonate IP68 Weatherproof / UV-Resistant IP30 DIN-Rail Enclosure 19-inch 3U Rackmount Chassis
SCADA / Integration Via GW22 Gateway Via GW22 Gateway IEC 61850, Modbus TCP, MQTT Modbus TCP, IEC 60870-5-104
END-TO-END TELEMETRY PIPELINE

How the VTI Continuous Thermal Monitoring System Works

Structured telemetry workflow from physical contact micro-harvesting to automated SCADA dispatch alerts under IEEE 2969 and CIGRE TB 999.

Step 01 · Induction

Self-Powered Contact Sensing

Sensors clamp directly onto energized copper/aluminum conductors. Miniature current transformers harvest operating energy from ≥ 1 A load current without requiring battery maintenance or outages.

≥ 1 A Magnetic Harvest
Step 02 · RF Mesh

Secure Wireless Telemetry

Encrypted telemetry transmissions over 2.4 GHz BLE (for indoor cubicles) or Sub-GHz LoRa (for 500 kV outdoor switchyards and transmission lines) penetrating metal enclosures reliably.

BLE 2.4 GHz & LoRa 3 km
Step 03 · Hub

Gateway GW22 Concentration

Industrial DIN-rail gateway aggregates over 1,000 thermal data streams simultaneously, caching telemetry locally and mapping channels to IEC 61850, Modbus TCP, and MQTT over TLS.

IEC 61850 & Modbus TCP
Step 04 · Intelligence

CBM Analytics & SCADA Dispatch

Software analyzes temperature differential (ΔT), rate of rise (dT/dt), and Arrhenius contact aging kinetics to predict failures weeks before conventional annual thermography inspections can detect them.

Arrhenius Contact Aging Index
GRID ASSET PROTECTION

Engineered for Critical High-Voltage Electrical Infrastructure

Continuous thermal telemetry tailored for every stage of power generation, transmission, and distribution.

MV/LV Switchgear & RMU Cubicles

Continuous monitoring of bolted busbar joints, disconnector jaws, and breaker tulip contacts inside sealed enclosures where infrared cameras cannot see during operation.

Explore Switchgear Solution →

Substations & Power Transformers

Monitoring bushing clamp palms, neutral ground bonds, and disconnector blade contacts under 110 kV to 500 kV electric fields with zero degradation.

Explore Substation Solution →

Overhead Transmission & Dynamic Line Rating

Real-time conductor thermal telemetry for 110–500 kV lines enabling dynamic line capacity unlocking (DLR) while preventing line sag and thermal overload.

Explore Transmission Solution →

HV Underground Cable Corridors

Distributed Raman OTDR sensing along up to 20 km of underground power cables with 0.5 m spot resolution to detect soil drying and localized hot spots.

Explore Fiber DTS Solution →
FIELD VALIDATION

Proven Reliability Across National Power Grids

Documented field performance and early hotspot detections in operating substations.

EVNNPC 110 kV Substation

Continuous Switchgear Monitoring Pilot

Deployment of 48 VTI-TS-22 sensors across 24 kV outgoing cubicles. Successfully detected a loose bolted cable lug with ΔT = +28 °C above ambient two weeks before planned IR thermography inspection.

Read Full Case Study →
500 kV EHV Substation Yard

Disconnector Blade Hotspot Detection

Deployment of VTI-TS-26 sensors on 500 kV substation disconnector blades. Continuous LoRa transmission across 800 m switchyard with 100% packet arrival rate under 500 kV energized electric field.

Explore Project Gallery →
COMPLIANCE & CERTIFICATION

Engineered Under Global Electrical Standards

Aligned clause-by-clause with international continuous thermal monitoring engineering guidelines.

IEEE Std 2969-2025

Strict alignment with IEEE standard for continuous thermal monitoring of electrical power equipment.

CIGRE TB 999

Complies with CIGRE Technical Brochure 999 Table 2.8-1 criteria for continuous temperature sensor telemetry.

500 kV Dielectric Tested

Type-tested partial discharge of 8.7 pC at 500 kV (below 10 pC limit) and -1500 kV lightning impulse withstand.

100% Domestic Manufacturing

Direct manufacturer based in Hanoi, Vietnam, guaranteeing rapid engineering support, spare parts, and custom fittings.

ENGINEERING KNOWLEDGE

Whitepapers & Engineering Manuals

Technical publications on continuous thermal monitoring, Arrhenius contact kinetics, and NFPA 70B electrical safety.

TECHNICAL WHITEPAPER · 2026

Continuous Thermal Monitoring: IEEE 2969 vs. Infrared Thermography

Analysis of Holm contact resistance, load-dependent temperature fluctuations, and why intermittent thermography misses up to 80% of developing faults.

Read Standard Guide →
ENGINEERING MANUAL

Condition-Based & Risk-Based Maintenance (CBM / RBM)

Engineering methodology for transitioning from time-based calendar inspections to dynamic real-time health index calculations.

Read CBM Manual →
INSTALLATION PROTOCOL

14 Critical Sensor Mounting Locations in Substations

Comprehensive guide on selecting optimal probe contact points across circuit breakers, disconnectors, cable pots, and busbar joints.

View Mounting Guide →
FAST ENGINEERING RESPONSE

Request Quotation & Technical Support

Our application engineers will review your electrical layout, sensor point schedule, and SCADA architecture to provide custom technical proposals and budgetary quotation within 2–4 business hours.
